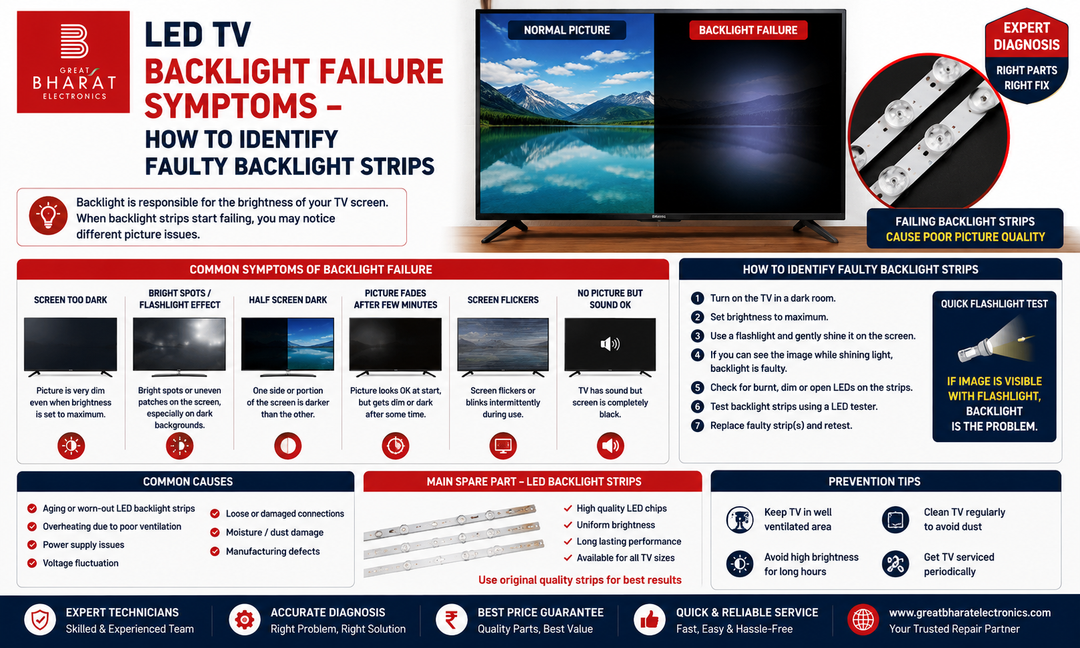

LED TV Backlight Failure Symptoms – How to Identify Faulty Backlight Strips
- 11 Jun, 2026
- Posted by: Team Great Bharat Electronics
⚠️ LED TV Backlight Failure Symptoms – How to Identify Faulty Backlight Strips
Backlight failure is one of the most common reasons for black screen, dim display, flickering picture and sound-but-no-picture faults in LED TVs.
This Great Bharat Electronics guide is written for customers who want to diagnose the issue clearly and order the correct TV spare part with confidence.
📌 Quick Answer
If your TV has sound but no picture, the LED backlight strips are one of the first parts to check. A flashlight test, strip code matching and panel number verification help you avoid ordering the wrong spare part.
📚 Contents
LED TV Backlight Failure Symptoms
Backlight failure usually starts slowly. A TV may first look slightly dim, then flicker, then show a picture for a few seconds before becoming black. In many cases the TV still produces sound because the audio circuit and main processing board are working, but the screen is not illuminated.
| Symptom | What It Usually Means | Part to Check |
|---|---|---|
| Sound works but screen is black | The panel may still be producing an image, but there is no light behind it | LED backlight strips |
| Picture appears briefly then disappears | Weak LEDs may shut down under load or heat | Backlight strip set / power supply |
| Screen is dim even at full brightness | Ageing LEDs or worn diffuser/backlight layer | LED strips |
| Half screen dark | One strip section or zone may have failed | Backlight strips / connectors |
| Flickering before black screen | LED strip or backlight driver stress | Backlight / power supply board |
Backlight Failure vs Panel Failure
A black screen does not always mean the display panel is damaged. If the flashlight test shows a faint image, the LCD panel may still be working and only the backlight illumination has failed. This is an important difference because replacement backlight strips are far more practical than full panel replacement in many models.
How to Confirm Backlight Failure
- Turn on the TV and confirm sound is working.
- Use a flashlight very close to the screen.
- Look for faint menus, logos or video movement.
- Check whether the screen flashes briefly during startup.
- Confirm the original strip code before ordering replacement strips.
Buy Replacement Part: LED TV Backlight Collection
Common Mistakes Before Buying Backlights
- Ordering only by screen size.
- Ignoring panel number and strip code.
- Replacing motherboard before checking backlight.
- Not checking connector position and LED count.
- Buying low-quality strips that fail early.
Brand Wise Backlight Failure Searches
Customers search this issue by brand name also. These search phrases are covered naturally in this guide:
- Samsung backlight failure symptoms
- LG backlight failure symptoms
- Sony backlight failure symptoms
- Mi backlight failure symptoms
- Redmi backlight failure symptoms
- OnePlus backlight failure symptoms
- TCL backlight failure symptoms
- Kodak backlight failure symptoms
- VU backlight failure symptoms
- Thomson backlight failure symptoms
- Panasonic backlight failure symptoms
- iFFALCON backlight failure symptoms
- Motorola backlight failure symptoms
- Nokia backlight failure symptoms
Approximate Backlight Replacement Cost
These are approximate market-level costs. Actual cost depends on TV brand, panel design, strip availability and technician diagnosis.
| TV Size | Approx Backlight Replacement Cost |
|---|---|
| 32 Inch | ₹3,840 |
| 40 Inch | ₹4,800 |
| 42 Inch | ₹5,040 |
| 43 Inch | ₹5,160 |
| 46 Inch | ₹5,520 |
| 48 Inch | ₹5,760 |
| 50 Inch | ₹6,000 |
| 55 Inch | ₹6,600 |
| 60 Inch | ₹7,200 |
| 65 Inch | ₹7,800 |
| 75 Inch | ₹9,000 |
| 85 Inch | ₹10,200 |
📦 Related TV Spare Parts
Replacement LED strip sets for black screen and dim display faults.
View Collection →SMPS/PSU boards for voltage, startup and backlight power faults.
View Collection →Main boards for video processing, booting and smart TV faults.
View Collection →Timing control boards for lines, white screen and signal faults.
View Collection →Display data cables between motherboard and panel section.
View Collection →Flat flexible display cables for panel and T-Con connection issues.
View Collection →🔗 Related Backlight Diagnosis Guides
- TV Has Sound But No Picture
- TV Screen Goes Black Randomly
- Flashlight Test for TV Backlight Failure
- TV Picture Fades After Few Minutes
- Half Screen Dark on LED TV
- TV Backlight Replacement Cost Guide
- How Long Does a TV Backlight Last?
❓ Frequently Asked Questions
What are common LED TV backlight failure symptoms?
Common symptoms include black screen with sound, dim picture, flickering screen, picture appearing briefly and half screen dark.
How do I confirm backlight failure?
Use the flashlight test. If a faint image is visible, the backlight system is likely faulty.
Can I buy LED TV backlight strips separately?
Yes. Great Bharat Electronics offers LED TV backlight strips for many TV brands and models.
Should I order backlights by TV size?
No. Match strip code, panel number, LED count, connector direction and product image.
Is sound but no picture always backlight failure?
Backlight failure is common, but power supply, motherboard, T-Con, LVDS or panel faults can also cause no picture.
Can weak backlights cause flickering?
Yes. Weak LED strips can flicker before completely failing.
Need the Correct TV Spare Part?
Great Bharat Electronics helps customers find compatible LED TV backlights, motherboards, power supply boards, T-Con boards, LVDS cables, FFC ribbon cables and other television spare parts.
Always match TV model number, panel number, board number, strip code, connector type and product image before ordering.
Conclusion
LED TV backlight failure symptoms include black screen with sound, dim picture, flickering, brief picture at startup and half screen dark. This guide explains how to identify faulty backlight strips and buy the correct replacement part. Correct diagnosis helps avoid wrong ordering and helps you select the right spare part for your TV model.
