Micromax TV T-Con Boards – Timing Control Boards for Micromax TVs
Micromax televisions use multiple internal boards and cables to process picture, sound, power and display functions. The T-Con Board, also known as Timing Control Board, is one of the most important parts in the display section of a Micromax TV.
The T-Con board receives video data from the motherboard through the LVDS cable and converts it into panel-specific timing signals. These signals are then sent to the display panel through FFC ribbon cables or panel connections. If the T-Con board is faulty, the TV may power on normally but still show display-related problems.
📺 Micromax TV Display Signal Flow
Motherboard➡️LVDS Cable➡️T-Con Board➡️FFC Cables➡️Display Panel
What Is A Micromax TV T-Con Board?
A Micromax TV T-Con Board is a display control board that manages timing signals, panel voltage control, image synchronization and display data processing. It helps the display panel understand the image signals coming from the motherboard.
Common Names
- Micromax T-Con Board
- Micromax Timing Control Board
- Micromax LCD Controller Board
- Micromax Display Control Board
- Micromax Panel Interface Board
- Micromax Logic Board for Display
Common Micromax TV T-Con Board Symptoms
📏 Vertical LinesSingle or multiple vertical lines appearing on the screen.
📐 Horizontal LinesLines appearing across the display panel.
🖥️ White ScreenBacklight is on, but no proper image is visible.
👥 Double ImagePicture appears duplicated or ghosted.
🎨 Color DistortionWrong colors, negative picture or washed-out display.
⚡ Flickering DisplayScreen flickers or image appears unstable.
Motherboard vs T-Con Board
🧠 Micromax Motherboard
- Controls smart TV functions
- Processes HDMI and AV input
- Handles software booting
- Controls audio and system operations
- Sends video signal to T-Con board
🖥️ Micromax T-Con Board
- Controls display timing
- Processes panel display signals
- Manages image synchronization
- Controls panel communication
- Sends image data to display panel
How To Match The Correct Micromax T-Con Board
Micromax T-Con boards are not universal. Do not buy only by screen size or brand name. The correct T-Con board should be matched with the original board number, panel number and TV model number.
Before Ordering, Check These Details
- Complete Micromax TV model number
- T-Con board number printed on the PCB
- Panel number or panel sticker
- Connector position and cable direction
- Original T-Con board photo
- Display problem photo or video if available

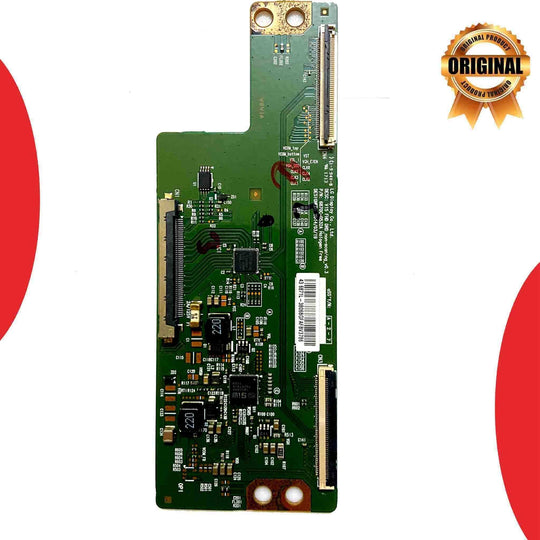

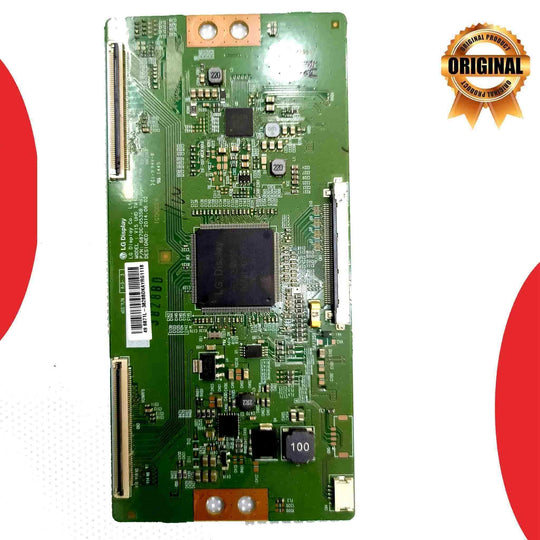

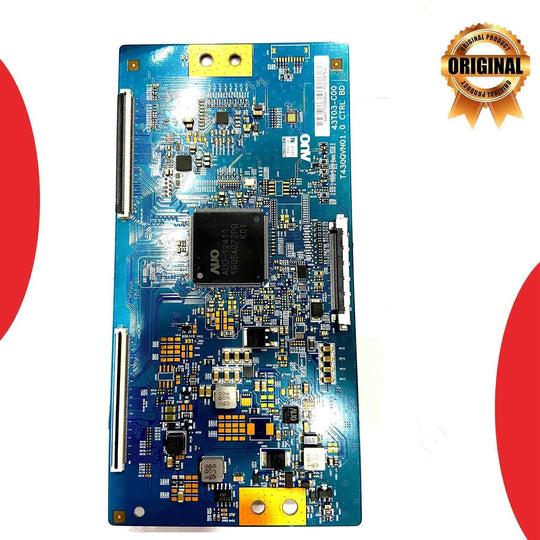

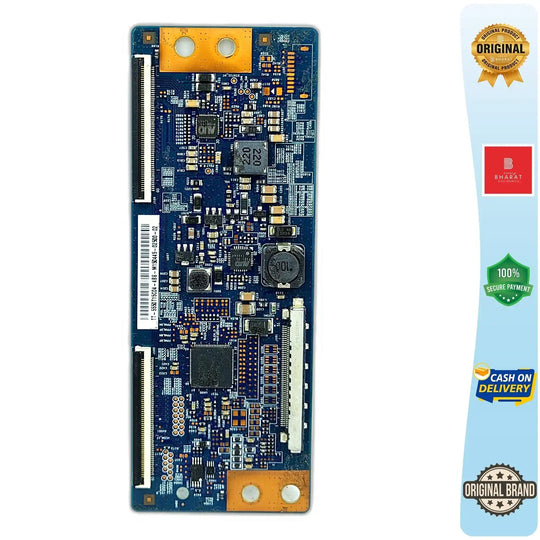

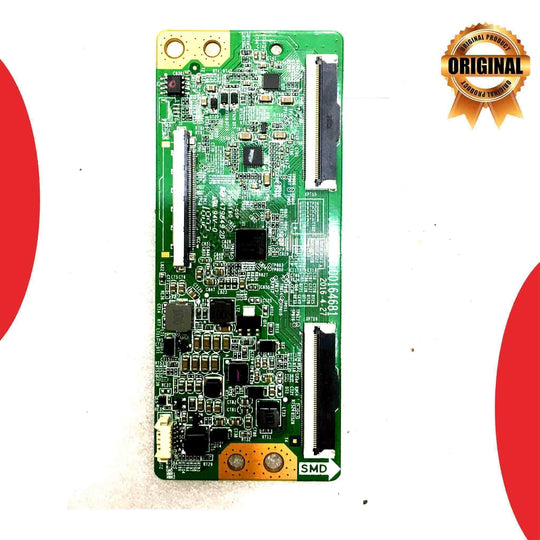

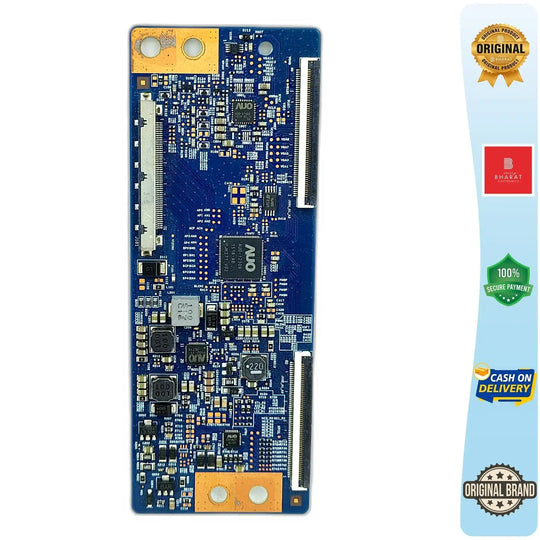

Micromax TV Models Supported
Our Micromax T-Con board inventory may support many Micromax LED TV, LCD TV, Smart TV and selected large-screen models. Stock availability changes regularly, so always confirm using the exact TV model and board number.
Micromax LED TVMicromax LCD TVMicromax Smart TVMicromax Android TVMicromax 32 Inch TVMicromax 43 Inch TVMicromax 55 Inch TV
Customers Also Search For
Need Help Finding A Micromax T-Con Board?
If you are not sure which Micromax T-Con board is suitable, send us the following details before ordering:
- Micromax TV model number
- T-Con board photo
- T-Con board number
- Panel sticker photo
- Display problem photo or short video
Our team will help verify compatibility wherever possible.
Frequently Asked Questions
What does a Micromax TV T-Con board do?
The T-Con board controls display timing, panel communication and image signal processing between the motherboard and display panel.
Can a faulty T-Con board cause lines on screen?
Yes. Vertical lines, horizontal lines, image distortion, flickering and double image can be related to a faulty T-Con board.
Can Micromax TV have sound but no picture because of T-Con board?
In some cases yes. However, LED backlight, panel, motherboard and LVDS cable faults can also cause similar symptoms.
Are Micromax T-Con boards universal?
No. Micromax T-Con boards are model-specific and should be matched using board number, panel number and connector layout.
How do I identify the correct Micromax T-Con board?
Match the T-Con board number, TV model number, panel number and original board photo before ordering.
Can I install a Micromax T-Con board myself?
T-Con replacement should be handled by a qualified technician because incorrect installation, cable damage or panel shorting can cause further damage.
